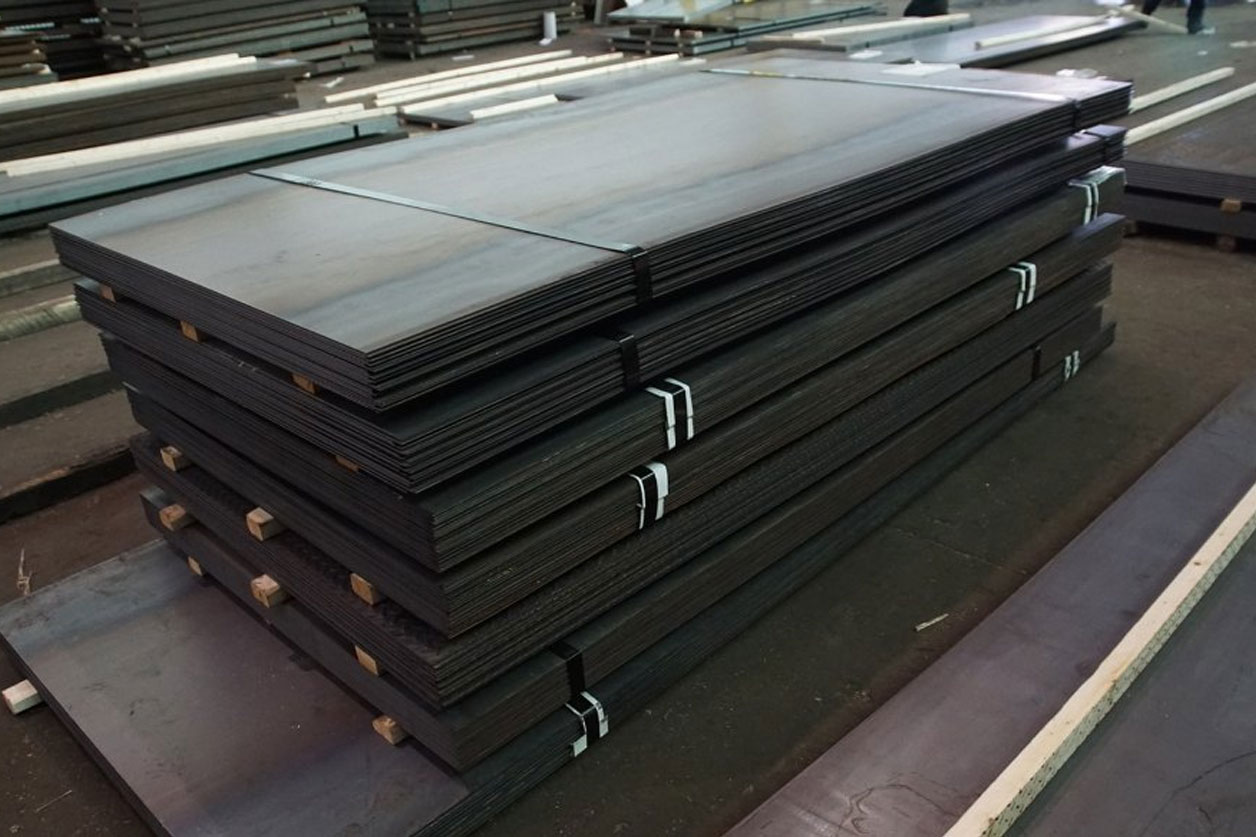

In the railway industry, choosing the right material is critical for ensuring safety, durability, and cost-effectiveness. IRSM-41-97 Plates and IRSM-44 Plates are two prominent options widely used in railway projects. As a trusted supplier, exporter, and stockist in Mumbai, India, Champak Industries provides both these high-quality steel plates. But which one is better suited for your railway project? Let’s dive into the key differences and applications.
What Are IRSM-41-97 Plates?
IRSM-41-97 Plates are weather-resistant steel plates designed for use in railway wagons, bridges, and other structural applications exposed to atmospheric conditions. These plates develop a protective patina over time, which helps prevent corrosion.
Key Features:
- Excellent corrosion resistance
- High tensile strength
- Low maintenance requirements
For more details, visit Champak Industries’ IRSM-41-97 Plates page.
What Are IRSM-44 Plates?
IRSM-44 Plates are a newer grade of weather-resistant steel with enhanced mechanical properties. These plates offer superior strength and resistance to harsh weather, making them suitable for more demanding railway applications.
Key Features:
- Higher tensile and yield strength compared to IRSM-41-97
- Superior atmospheric corrosion resistance
- Ideal for heavy-duty railway applications
Learn more about IRSM-44 Plates at Champak Industries.
IRSM-41-97 vs. IRSM-44 Plates: Key Differences
1. Chemical Composition
While both plates are designed for weather resistance, their chemical compositions vary, impacting their performance and applications.
| Element | IRSM-41-97 (%) | IRSM-44 (%) |
| Carbon (C) | ≤ 0.12 | ≤ 0.10 |
| Manganese (Mn) | 0.20 – 0.50 | 0.30 – 0.60 |
| Silicon (Si) | 0.25 – 0.75 | 0.30 – 0.80 |
| Phosphorus (P) | ≤ 0.035 | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.025 |
2. Mechanical Properties
The mechanical strength of these plates determines their suitability for different railway applications.
| Property | IRSM-41-97 | IRSM-44 |
| Tensile Strength | 480 – 620 MPa | 520 – 680 MPa |
| Yield Strength | 340 MPa | 370 MPa |
| Elongation | ≥ 20% | ≥ 22% |
3. Application Suitability
- IRSM-41-97 Plates are ideal for standard railway wagons, structural components, and bridges.
- IRSM-44 Plates are better suited for heavy-duty applications requiring higher strength and superior weather resistance.
Applications in Railway Projects
1. Railway Wagons and Freight Cars
Both IRSM-41-97 and IRSM-44 Plates are used in the construction of railway wagons. However, IRSM-44 Plates offer better performance in environments with extreme weather conditions.
2. Railway Bridges and Overpasses
Bridges exposed to varying atmospheric conditions benefit from the superior corrosion resistance of IRSM-44 Plates, while IRSM-41-97 Plates are sufficient for less demanding environments.
3. Railway Platforms and Stations
For platforms and station structures, IRSM-41-97 Plates provide a cost-effective solution with adequate weather resistance.
Explore more about alloy steel plates and their applications at Alloy Steel Plates.
Why Choose Champak Industries?
At Champak Industries, we pride ourselves on being a leading supplier, exporter, and stockist in Mumbai, India. We offer both IRSM-41-97 and IRSM-44 Plates to meet the diverse needs of railway projects.
Our Advantages:
- Extensive product inventory
- Competitive pricing
- Timely delivery
Browse our full range of products at Champak Industries Products and Alloy Steel Plates Products.
Frequently Asked Questions (FAQs)
- What is the primary difference between IRSM-41-97 and IRSM-44 Plates?
IRSM-44 Plates offer higher tensile strength and better corrosion resistance compared to IRSM-41-97 Plates, making them suitable for more demanding railway applications. - Where can I buy IRSM-41-97 and IRSM-44 Plates in Mumbai, India?
You can purchase high-quality plates from Champak Industries, a leading supplier and exporter in Mumbai. - Are these plates environmentally friendly?
Yes, both plates are designed for longevity and minimal maintenance, reducing the need for frequent replacements and conserving resources. - Which plate is better for coastal railway projects?
IRSM-44 Plates are better suited for coastal and high-humidity environments due to their superior atmospheric corrosion resistance.
