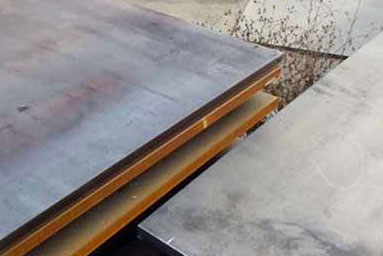

What is ALFORM 700 Steel Plate and Why is It Important?
ALFORM 700 is a high-strength, thermomechanically rolled structural steel plate known for its excellent weldability, cold formability, and exceptional tensile strength. Manufactured under stringent quality controls, ALFORM 700 is engineered to deliver outstanding mechanical performance in demanding industrial environments.
With a minimum yield strength of 700 MPa, this steel plate is widely used in structures that require maximum strength-to-weight ratio. It allows fabricators to reduce material thickness without compromising on load-bearing capacity—resulting in lighter, more efficient designs. This property makes ALFORM 700 highly sought after across sectors like transport, heavy lifting, construction machinery, and pressure vessels.
Industrial Applications of ALFORM 700 Plates
ALFORM 700 plates are a trusted solution for industries that demand high mechanical strength, resistance to dynamic loading, and excellent forming properties. Common application areas include:
- Crane booms and lifting equipment
- Low-bed trailers and heavy transport vehicles
- Construction and mining machinery
- Wind tower segments and support structures
- Structural components in bridges and high-rise buildings
- Load-bearing elements in pressure vessels and tanks
Their ability to withstand fatigue, stress, and challenging environmental conditions makes ALFORM 700 a preferred material in cost-efficient structural engineering.
Mechanical Properties that Define ALFORM 700 Performance
| Property | Typical Value |
|---|---|
| Yield Strength | ≥ 700 MPa |
| Tensile Strength | 780 – 950 MPa |
| Elongation (L0 = 5.65√So) | ≥ 14% |
| Impact Strength @ -20°C | ≥ 27 J |
| Thickness Range | 3 mm to 100 mm |
These mechanical characteristics enable superior formability during fabrication and ensure long-term durability even under fluctuating loads or harsh outdoor conditions.
ALFORM 700 Plate Standards and Equivalent Grades
ALFORM 700 is produced in line with strict international metallurgical standards, typically conforming to specifications related to thermomechanically rolled high-strength steels. Though it has its proprietary composition, its performance often matches or exceeds the standards of:
- EN 10025-6 (S690QL / S700MC equivalents)
- ASTM A514 Grade Q
- DIN StE 700 or QStE 690
- JFE HITEN 780LE (comparative tensile band)
Its performance profile positions it among globally recognized high-strength plates, ideal for OEM and structural projects requiring certification and traceability.
Thickness Range, Dimensions & Supply Sizes
At Champak Industries, we supply ALFORM 700 steel plates in a wide range of sizes to meet diverse structural and fabrication requirements:
- Thickness: 3 mm to 100 mm
- Width: Up to 2500 mm (customized cuts available)
- Length: Up to 12 meters
- Surface Finish: Mill finish or shot blasted + primer coated (on request)
Custom size cutting, edge preparation, and third-party inspection can be provided as per buyer demand or project requirement.
Fabrication, Forming & Welding Characteristics
ALFORM 700 plates are known for their excellent cold formability and weldability, thanks to controlled carbon equivalent and advanced rolling techniques. Here’s what makes fabrication smoother:
- Cold Forming: Suitable for bending, flanging, and edge forming without cracking
- Welding: Compatible with all conventional arc welding methods (MIG/MAG, SAW, TIG)
- Preheating: Usually not required for <25 mm thickness, but recommended for thicker plates or high restraint joints
- Post Weld Heat Treatment (PWHT): Typically not necessary unless stated by project spec
These properties help reduce processing time, fabrication cost, and structural risk during final assembly.
Why Structural Engineers Prefer ALFORM 700 Plates
- Weight Reduction: Allows for thinner sections in high-load applications
- High Fatigue Strength: Withstands stress cycles in dynamic equipment
- Improved Design Flexibility: Enables sleek, modern structural designs
- Optimized Yield-to-Tensile Ratio: Ensures safety without overdesigning
- Corrosion Resistance (with coating): Performs well in outdoor conditions when properly painted or galvanized
This unique combination makes ALFORM 700 the go-to choice for engineers working on mobile cranes, truck frames, towers, and pressure-critical components.
Related Grades You May Also Consider
If your project requires similar strength and fabrication benefits, you may also explore:
Our technical team can help you choose between these grades based on your application, thickness, and load-bearing expectations.
Excellent. Here is Block 3 for the blog “Why ALFORM 700 Plates Are a Go-To for High-Tensile Needs”, covering export destinations, buyer guide, certifications, CTA, and SEO voice-search FAQs.
Global Supply & Export Destinations for ALFORM 700 Plates
Champak Industries supplies ALFORM 700 high-strength plates to a wide range of industries and OEMs across the globe. Our export-ready plates are used in:
- UAE, Saudi Arabia, Oman, and Qatar – for crane booms, mobile equipment, and drilling platforms
- South Africa, Egypt, and Nigeria – in mining dump bodies and support vehicles
- Vietnam, Indonesia, and Malaysia – in trailer chassis and structural applications
- Europe and North America – for heavy-duty lifting, lifting arms, wind towers, and structural frameworks
All export shipments are securely packed with edge protection, anti-rust wrapping, export documentation, and third-party inspection certificates as per project requirements.
Buyer’s Guide – When to Choose ALFORM 700?
Choose ALFORM 700 plates when your project demands:
✅ Higher yield strength (min 700 MPa) without compromising on weldability
✅ Reduction in structural weight and increase in payload capacity
✅ Better fatigue resistance in mobile, vibrating, or moving structures
✅ Thinner sections for the same performance — reducing cost and material weight
✅ Superior performance over conventional S355 or S460 steels
If your application involves crane construction, lifting equipment, wind tower segments, truck frames, or pressure-bearing containers, ALFORM 700 is a strategic, cost-saving alternative to over-engineered or heavier steel grades.
Certifications, Quality Control & Inspection Support
Every ALFORM 700 plate supplied by Champak Industries comes with:
- Mill Test Certificates (EN 10204 3.1 / 3.2)
- Ultrasonic Testing (UT) reports
- NABL-approved third-party inspection (if required)
- Material Traceability Certificate
- HSN Code + Country of Origin (for customs compliance)
We maintain batch-wise traceability and can provide hardness, tensile, impact, and elongation values as per your test plan or material specification sheet.
Request Price Quote or Datasheet
Looking to source ALFORM 700 plates for your next project?
👉 Request a Quote Now
👉 Talk to a Technical Expert
👉 Download Datasheet or Material Test Report (MTR)
👉 Get Export Pricing with Packing & Logistics
Our team responds within 24 hours with grade-specific quotes, lead time, mill origin, and quality certifications.
FAQs
Q1. What is ALFORM 700 plate used for?
ALFORM 700 is used in mobile cranes, lifting arms, truck frames, wind towers, and structural applications where high yield strength and light weight are critical.
Q2. What is the minimum yield strength of ALFORM 700?
Minimum yield strength is 700 MPa, depending on thickness and condition.
Q3. Is ALFORM 700 plate weldable?
Yes, it offers excellent weldability without requiring extensive preheating for thinner sections.
Q4. What are the advantages of ALFORM 700 vs S690QL?
ALFORM 700 may offer better formability and lighter structure design flexibility compared to standard S690QL.
Q5. Can I use ALFORM 700 in cold climates?
Yes, with proper impact testing, it is suitable for low-temperature applications.
Q6. What surface finishes are available for ALFORM plates?
Standard is mill finish, with optional primer-coated or shot-blasted surfaces available.
Q7. How is ALFORM 700 plate priced?
Price varies based on thickness, width, origin, and quantity — request a quote for accurate pricing.
Q8. Can you provide cut-to-size ALFORM 700 plates?
Yes, we offer cut-to-length services, edge profiling, and fabrication support.
Q9. What thickness range is ALFORM 700 available in?
Typically from 3 mm to 100 mm, depending on mill availability.
Q10. Are these plates available with 3.1 / 3.2 certification?
Yes, both EN 10204 3.1 and 3.2 certifications are available on request.
Q11. What is the carbon equivalent of ALFORM 700?
It is designed to have a low carbon equivalent for better weldability — CE ≤ 0.43 depending on thickness.
Q12. Can I use ALFORM 700 for structural bridge design?
Yes, especially where weight reduction and fatigue strength are important.
Q13. Who manufactures ALFORM 700 plates?
They are proprietary plates, typically manufactured by Voestalpine and supplied via approved distributors.
Q14. Do you export ALFORM plates outside India?
Yes, we export to UAE, Africa, Southeast Asia, and Europe.
Q15. How soon can I get delivery in GCC countries?
We offer fast dispatch from stock and project-based sourcing with delivery in 2–4 weeks depending on location.
