The EN19 Grade Steel Plate that we offer exactly matches the desirable plates of such kinds. It is of the best quality and endowed with high tensile strength. We are working in full throttle to make it available to the length and breadth of the country and abroad. We are one of the eminent Exporters and Suppliers of EN19 Grade Steel Plate from Mumbai, India.
Applications :
EN19T was originally introduced for the use in the machine tool and motor industries for gears, pinions, shafts, spindles and the like. Later its applications became much more extended and it is now widely used in areas such as the oil and gas industries. EN19T is suitable for applications such as gears, bolts, studs and a wide variety of applications where a good quality high tensile steel grade is suited.
- Forging :
- Pre heat carefully, then raise temperature to 850-1200oC for forging. Do not forge below 850oC. After forging cool slowly in still air.
- Annealing :
- Heat the EN19T slowly to 680-700oC. Cool in air.
- Hardening :
- This steel grade is commonly supplied ready heat treated. If further heat treatment is required annealed EN19 should be heated slowly to 860-890oC and after adequate soaking at this temperature quench in oil. Temper as soon as tools reach room temperature.
- Tempering :
- Heat carefully to a suitable temperature selected by reference to a tempering chart or table. Soak at the temperature for 2 hours per 25mm of ruling section, then allow to cool in air. Tempering between 250-375oC is not advised as tempering within this range will reduce the impact value.
- Heat Treatment :
- Heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each steel component. Other considerations during the heat treatment process include the type of furnace, quenching medium and work piece transfer facilities. Please consult your heat treatment provider for full guidance on heat treatment of EN19T alloy steel..
EN19 and EN19T: EN19T means EN19 hardened and tempered to tensile condition T (850–1000 N/mm²). The same steel is supplied annealed, for machining before hardening, or in conditions R to W listed in the mechanical properties table. “Tools” in the hardening step means the parts being hardened.
EN19 Plates: Quick Buying Information
| Buying item | Information to specify |
|---|---|
| Grade and standard | EN19 / 709M40 to BS 970, 42CrMo4 / 1.7225 to EN 10083-3, or AISI 4140, as your drawing names. |
| Delivery condition | Annealed, or hardened and tempered to a tensile condition (R, S, T, U, V or W) or hardness range. |
| Dimensions | Thickness × width × length in mm; number of plates or total weight; machining allowance. |
| Processing | Cut-to-size blanks or profiles, with drawing and tolerances. |
| Documents | Mill test certificate (for example EN 10204 3.1), ultrasonic and impact tests where required, inspection and destination. |
Explore Related Engineering Steel Plates
1.0503

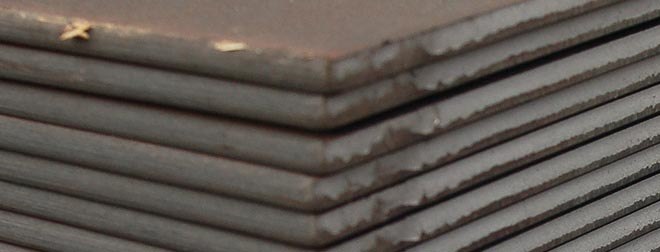

C45 Plates
Medium-carbon engineering steel for machined parts where EN19's strength and hardenability are not needed.
View C45 Plates
Cr-Mo
Alloy Steel Plates
Chrome moly pressure-vessel plate (ASTM A387, EN 10028-2) for elevated-temperature service, rather than machined parts.
View Alloy Steel Plates
S690QL
High Tensile Plates
Weldable quenched and tempered structural plate for cranes and load-bearing structures.
View High Tensile Plates
General
Steel Plates
General steel plate range, including C45, TISCRAL, SAILHARD and DSQ dead-soft plate.
View Steel PlatesEquivalent Grades
| Internal Standard | BS | Din | IS | EN | Saf/Aisi |
|---|---|---|---|---|---|
| En 19 | 709M40 | 42CrMo2 | 40Cr4Mo3 | EN19 | 4140, 412 |
Reading the table: The DIN grade is 42CrMo4 (material number 1.7225), now in EN 10083-3, and the AISI/SAE grades are 4140 and 4142. EN19 is the older BS 970 name for 709M40. These grades have similar but not identical limits; order the one your drawing names, or state that an equivalent is acceptable.
Chemical Composition
| Element | Min | Max |
|---|---|---|
| Carbon, C | 0.35 | 0.45% |
| Manganese, Mn | 0.5 | 0.80% |
| Silicon, Si | 0.1 | 0.35% |
| Nickel, Ni | ----- | ----- |
| Molybdenum, Mo | 0.2 | 0.40% |
| Chromium,Cr | 0.9 | 1.50% |
| Sulfur, S | ----- | 0.05 |
| Phosphorous, P | ----- | 0.05 |
Chemistry limits: These are wide limits covering EN19 and its equivalents. BS 970 709M40 and EN 10083-3 42CrMo4 set narrower chromium, molybdenum, phosphorus and sulphur limits, so the certificate should be checked against the standard you order.
Mechanical Properties
| Heat Treatment | Tensile Strength Rm N/mm² | Yield Stress Re N/mm² | a% on 5.665ÖSo | Impact Izod J | Impact KCV J | Proof Stress rp0.2 | Hardness HB | Size mm |
|---|---|---|---|---|---|---|---|---|
| R | 700/850 | 495 | 15 | 34 | 28 | 480 | 201/225 | >100≤250 |
| S | 775/925 | 555 | 13 | 27 | 22 | 540 | 223/277 | >150≤250 |
| S | 775/925 | 585 | 15 | 54 | 50 | 570 | 223/277 | >63≤150 |
| T | 850/1000 | 680 | 13 | 54 | 50 | 655 | 248/302 | >29≤100 |
| U | 925/1075 | 755 | 12 | 47 | 42 | 740 | 269/331 | >13≤63 |
| V | 1000/1150 | 850 | 12 | 47 | 42 | 835 | 293/352 | >6≤29 |
| W | 1075/1225 | 940 | 12 | 40 | 35 | 925 | 311/375 | >6≤19 |
Condition codes and ruling section: R to W are BS 970 tensile conditions; each gives a tensile range that can be met only up to the size shown in the last column (the ruling section). For example, condition T (850–1000 N/mm²) is listed for sections over 29 mm up to 100 mm. “a% on 5.665ÖSo” is elongation on a gauge length of 5.65√So. Choose the condition from the strength you need and the plate thickness.
How to Select the Right EN19 Plate
- Strength
- Ruling section
- Heat treatment
- Machining
- Toughness
Start from the strength the part needs and the finished section size, then pick the tensile condition that is listed for that size. Order annealed plate if you will machine heavily and then harden, or hardened and tempered plate (for example EN19T) to machine and use directly. EN19 needs preheat and post-weld treatment for welding, so it is mainly a machining grade. This guidance supports purchasing; the designer's approved grade and condition decide suitability.
EN19 Compared with Related Engineering Steels
| Grade | Type | Typical selection focus |
|---|---|---|
| C45 | Medium-carbon non-alloy steel | Lower-cost machined parts in smaller sections |
| EN19 / 42CrMo4 | 1% Cr – 0.2% Mo alloy steel | Gears, shafts and studs needing higher strength in larger sections |
| EN24 / 34CrNiMo6 | Ni-Cr-Mo alloy steel | Heavier sections and higher toughness than EN19 |
For orientation only. EN24 is not on this page; ask for it in your enquiry if your drawing names it.
Applications and Service Requirements
| Application | Condition to evaluate | Selection input |
|---|---|---|
| Gears and pinions | T or U, or annealed then hardened | Tooth load, section and surface hardening |
| Shafts and spindles | S, T or U | Torque, fatigue and diameter |
| Bolts, studs and fasteners | T to W | Strength class and thread size |
| Oil and gas components | As specified by the project | Hardness limits and impact requirements |
| Machine-tool and press parts | Annealed or T | Machining and final hardness |
These are material application examples. Final selection depends on the actual service conditions and specification.
Cut-to-Size EN19 Blanks and Profiles
EN19 plate can be cut to size and shape to your drawings through our cutting services, including plasma cutting. Send the condition, thickness, drawing, quantity, tolerances and machining allowance. Thermal cutting hardens the cut edge of alloy steel, so allow for this before machining, or ask about preheating for thick plate.
Testing, Material Documents and Traceability
State the certificate type and test scope with the RFQ. A mill test certificate for the plate and the company's quality-system certification are different documents.
| Requirement | What to identify in the order |
|---|---|
| Material certificate | EN 10204 3.1 or 3.2, showing grade, chemistry, condition and tensile, impact or hardness results |
| Hardness | Hardness range for the condition, where your drawing sets one |
| Internal soundness | Ultrasonic testing standard and class for thick plate, where required |
| Traceability and inspection | Heat number on plate and certificate; buyer or third-party inspection |
Review our Quality Policy and include your inspection requirements in the enquiry.
Why Source EN19 Plates from Champak Industries?
Our Mumbai service centre supplies EN19 / 42CrMo4 alongside C45 and other engineering and alloy steel plate, so one enquiry can cover several grades. Plates can be cut to size and shape to your drawings, with the documents you need for India or export. Read our Company Profile for the wider supply offering.
EN19 Plate Price and Quotation
Price depends on the delivery condition, thickness, plate size, quantity, cutting, testing, inspection, packing and destination. Hardened and tempered plate costs more than annealed plate. Send a complete requirement for a quotation stating the price basis, tax/freight treatment and validity.
Domestic Dispatch and Export Requirements
For domestic orders, give the delivery address and unloading requirements. For exports, specify the destination, delivery terms, packing and marking instructions and the shipping documents required, with your required delivery date.
We Supply En19 Plate/42CRMO4 Grade Plate in listed cities in India
Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Dehradun, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Bhadravati, Chattisgarh, Durgapur, Asansol, Hospet, Bellary, Visakhapatnam, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Stainless Steel Pipe dealers in Salem, Amritsar, Noida, Kochi (Cochin), Mangalore, Indore, Vadodra, Bhubaneswar, Bikaner, Bhavnagar, Tirupur, Ankleshwar, Warangal, Agartala, Thoothukudi, Stainless Steel Pipe suppliers in Pune, We offer fastest delivery in India including Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot, Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh, Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry, Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya, Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram, Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi, Uttar Pradesh in India.
Location note: The phrases “Stainless Steel Pipe dealers in Salem” and “Stainless Steel Pipe suppliers in Pune” in the list above refer to the cities of Salem and Pune. This page does not cover stainless steel pipe.
We Supply and Export in listed Country
United States of America, Malaysia, UAE, Indonesia, Saudi Arabia, Iran, Qatar, India, China, United Kingdom, Singapore, Canada, Thailand, South Korea, Turkey, Philippines, Egypt, Germany, Italy, Japan, Russia, Vietnam, Australia, South Africa, Portugal, Morocco, Costa Rica, Kazakhstan, Netherlands, Mexico, Brazil, France, Spain, Taiwan, Nigeria, Bangladesh, Kuwait, Iraq, Ukraine, Poland, Jordan, Romania, Oman, Hong Kong, Venezuela, Colombia, Norway, Chile, Trinidad & Tobago, Greece, Czechia, Belgium, Sri Lanka, Cyprus, Angola, Myanmar (Burma), United Kingdom, Canada, South Korea, Thailand, Netherlands, Spain, Turkey, Australia, Mexico, Pakistan, Vietnam, Brazil, Philippines, France, Taiwan, Poland, South Africa, Russia, Nigeria, Kuwait, Czechia, Norway, Romania, Egypt, Oman, Sweden, Belgium, Hong Kong, Israel, Colombia, Switzerland, Denmark, Finland, Argentina, Venezuela, Peru, Ukraine, Chile, Bangladesh, Portugal, Ireland, Austria, Algeria, Greece, Iraq, New Zealand, Slovakia, Hungary, Kazakhstan, Slovenia, Lithuania, Serbia, Sri Lanka, Bahrain, Bulgaria, Morocco, Tunisia, Croatia, Jordan, Ecuador, Trinidad & Tobago, Estonia, Azerbaijan, Ghana, Lebanon, Cyprus, Dominican Republic, Latvia, Libya, Costa Rica, Cambodia, Macedonia (FYROM), Belarus, Jamaica, Palestine, Turkmenistan
Frequently Asked Questions About EN19 Plates
01What is EN19 steel?
EN19 is a chromium-molybdenum alloy steel, the older BS 970 name for 709M40. It is equivalent to 42CrMo4 (1.7225) and close to AISI 4140, and is used for gears, shafts and studs.
02Is EN19 the same as 42CrMo4 and 4140?
They are close equivalents with similar chemistry, but each standard has its own limits and property tables. Order the grade your drawing names, or confirm an equivalent is acceptable.
03What does EN19T mean?
EN19T is EN19 hardened and tempered to condition T, with a tensile strength of 850–1000 N/mm². Other conditions run from R (700–850) to W (1075–1225).
04Why do the conditions have size limits?
Thick sections cool more slowly when quenched, so they cannot reach the higher strength levels. Each condition is listed up to a maximum ruling section; choose one that covers your plate thickness.
05Should I buy annealed or hardened and tempered plate?
Buy annealed plate if you will machine heavily and then harden the part. Buy hardened and tempered plate, such as EN19T, if you will machine it and use it without further heat treatment.
06Can EN19 be welded?
It can, with preheat and post-weld heat treatment to avoid cracking, but it is mainly a machining grade. Welding also changes the heat-treated properties near the weld.
07What plate sizes are available?
Send the thickness, width, length, condition and quantity you need. Availability is confirmed against the grade and dimensions in your enquiry.
08Can EN19 plate be cut to size?
Yes. Plates can be cut to size and shape to your drawings. Send the drawing, thickness, quantities, tolerances and machining allowance.
09Which certificates should my RFQ request?
Request an EN 10204 3.1 or 3.2 certificate showing chemistry, condition and tensile, impact or hardness results, plus heat traceability and any ultrasonic test.
10How do I obtain a price and delivery offer?
Send the grade, delivery condition, dimensions, quantity, cutting needs, documents, destination and required date.
