Manganese Steel Plates or Manganese Steel Sheets | 12 - 14% Manganese Steel X120MN12 grade manganese plate, mn13 grade manganese plate and Hadfield manganese Plates & Sheets Supplier In Mumbai-India.
Champak Industries' is a specialist supplier and exporter of High strength steels Manganese Steel Plates are known as one the toughest kind of steels available in the market. The plates are abrasion resistant and possess an excellent metal work hardening capability. Ideal for wearing plates for strengthening process, these manganese steel grades are widely demanded in various industries. Owing to its maximum wear resistant life, these plates are widely used in conveyor parts, grizzly bar, truck bed bodies and more.
The main property of manganese steel sheets is that, it contains 12%-14% of manganese steel. Due to this toughness, these steel plates are able to absorb shock leads safely. The best part about these non-magnetic plates is that during the work hardening process only the outer surface hardens. While the inner layer remains highly ductile.
Composition: Hadfield manganese steel contains about 12–14% manganese and about 1.0–1.3% carbon, as shown in the chemistry tables on our X120MN12 and 12-14% Manganese Steel pages. It is supplied water-quenched (solution annealed) to give a tough, non-magnetic austenitic structure.
Manganese Steel Plates: Quick Buying Information
| Buying item | Information to specify |
|---|---|
| Grade | 12–14% manganese (Hadfield) plate, as X120Mn12 / 1.3401 or Mn13, with any chemistry limits your drawing sets. |
| Dimensions | Thickness × width × length in mm or inches; number of plates or total weight. |
| Processing | Cut-to-size pieces, liners or profiles, with drawing, hole and bending requirements. |
| Service | Impact level and abrasive material, so the grade can be checked against AR plate. |
| Documents | Mill test certificate type (for example EN 10204 3.1), inspection and destination. |
For sliding abrasion with little impact, compare quenched wear plate on our Abrasion Resistant Plates page.
Explore Our Manganese Steel Plate Range
12 – 14% Mn

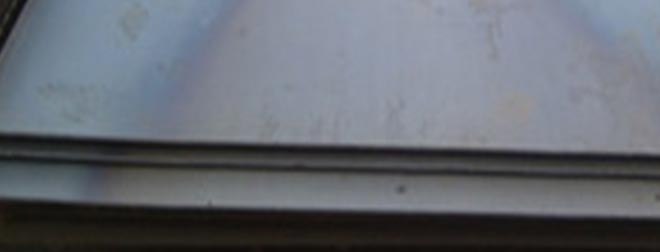

12-14% Manganese Steel Plates
Overview of high manganese plate to X120Mn12 / 1.3401, with chemistry, mechanical and physical properties. Start here if the designation is not fixed.
View 12-14% Manganese Steel Plates
1.3401

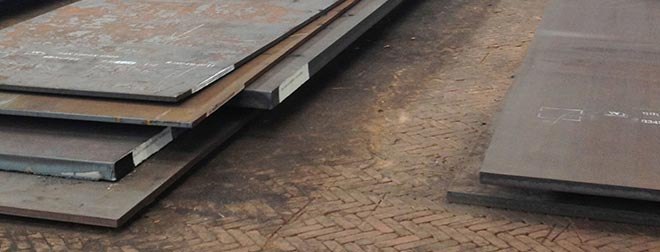

X120MN12 Grade Manganese Plates
Material data for 1.3401, including thickness-dependent yield and tensile values and welding-electrode guidance.
View X120MN12 Grade Manganese Plates
Mn13

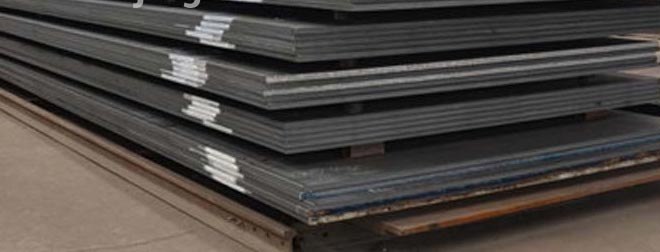

MN13 Grade Manganese Plates
Fully austenitic, quench-annealed, non-magnetic manganese plate that work-hardens under severe surface wear.
View MN13 Grade Manganese Plates
Hadfield

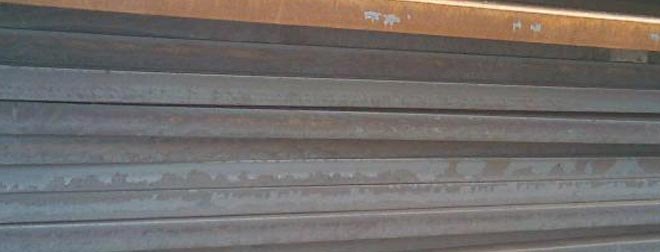

Hadfield Managanese Plates
Hadfield manganese plate for high-impact wear, with typical and guaranteed mechanical values and standard cross-references.
View Hadfield Manganese PlatesAVAILABLE RANGE:
- Hadfield Manganese Plate
- High Manganese Steel Plate
FEATURES:
- Highly ductile
- Non-magnetic properties
- High tensile strength
- Great welding ability
- High abrasion resistance
ADVANTAGES
- Resistance to high abrasion and severe impact.
- Will work hardened rapidly to 550BHN.
- Remains ductile throughout.
- Hadfield Grade.
- Can be welded.
- Has non-magnetic properties.
- Can be cut with oxy-acetylene torch, plasma, water jet, or laser.
- Made to the toughest standards in the industry for extended service life
Work hardening needs impact: Manganese steel reaches high surface hardness only under repeated impact or heavy pressure. Our product pages quote different in-service figures — 500, 550 and at least 600 BHN — because the result depends on the application. Under sliding abrasion with little impact the surface stays near its delivered hardness, and quenched abrasion resistant plate is usually the better choice.
Welding and heat: Manganese steel can be welded, but it loses toughness if held at elevated temperature. Use low heat input, keep the plate cool between passes and use austenitic manganese electrodes — our X120MN12 page specifies 0.8–1.0% C, 15–18% Mn shielded electrodes. Do not preheat. The same care applies to thermal cutting, and the steel cannot be hardened or softened by normal heat treatment.
Manganese Steel or Abrasion Resistant Plate?
| Property | Manganese steel (Hadfield) | Quenched AR plate (400–500 HBW) |
|---|---|---|
| Delivered hardness | About 200–250 BHN | About 400–500 HBW, through the thickness |
| How it resists wear | Surface work-hardens under impact; core stays tough | Hardness is present from the start |
| Suits | Heavy repeated impact: crusher jaws, hammers, grizzly bars | Sliding abrasion: chutes, liners, buckets, bodies |
| Magnetic | Non-magnetic | Magnetic |
| Machining and drilling | Difficult; work-hardens under the tool | Possible with suitable tooling |
| Welding | Low heat input, austenitic manganese consumables | Controlled preheat and heat input per mill data |
For orientation only. Hardness values come from our product pages and typical mill data; the service conditions decide which material lasts longer.
How to Select the Right Manganese Steel Plate
- Impact level
- Abrasion type
- Non-magnetic need
- Thickness
- Welding & cutting
Choose manganese steel where parts take heavy, repeated impact or high-pressure gouging that will keep work-hardening the surface, or where a non-magnetic wear part is needed, such as near magnetic separators. Where wear is mainly sliding abrasion with little impact, compare quenched AR plate. Allow for limited machining: holes and profiles are normally cut before the plate is hardened in service. This guidance supports purchasing; the equipment designer's approved material decides suitability.
APPLICATIONS
- Wheelabrators
- Shake-Out Decks
- Shot Blast Cabinets
- Sintering Seal Bars
- Scrappers
- Screens
- Crusher Liners
- Grader Blades
- Elevator Buckets
- Baffle Plates
- Stone Chutes
- Bucket Liners
- Crusher Jaws
- Hammers
- Chain Wear Bars
- Grizzly Bars
Applications and Service Requirements
| Application | Why manganese steel | Selection input |
|---|---|---|
| Crusher jaws and liners | Repeated heavy impact work-hardens the surface | Feed size, rock type and thickness |
| Hammers and impact mills | Toughness against shock loading | Impact energy and fixing method |
| Grizzly bars and screens | Impact from falling rock and scrap | Bar size, opening and wear pattern |
| Shot blast cabinets and wheelabrators | Repeated impact from shot | Shot type, coverage and access for replacement |
| Shake-out decks and foundry equipment | Impact and handling of hot sand castings | Operating temperature and impact |
| Areas near magnetic separators | Non-magnetic in the delivered condition | Magnetic permeability requirement |
These are material application examples. Final selection depends on the actual service conditions and equipment specification.
TYPICAL MECHANICAL PROPERTIES
| Hardness (as delivered) | 250 BHN |
|---|---|
| Tensile Strength | 132,000 P.S.I. Min. |
| Yield Strength | 90,000 P.S.I. Min. |
| After Work Hardening | 550 BHN |
| * Actual field results may vary depending upon the application and overall conditions of use. | |
Yield strength: 132,000 psi is about 910 MPa. Our product pages list a lower yield strength than the 90,000 psi (about 620 MPa) above: 345–410 MPa by thickness on the X120MN12 page and 350 MPa guaranteed on the Hadfield page. Order against the values on the mill certificate.
AVAILABLE PLATE SIZES
| 1/4" | 1/2" | 3/4" | 1-1/4" | 2" |
| 3/8" | 5/8" | 1" | 1-1/2" | 3" |
| * Call for availability on all sizes. | ||||
AVAILABLE WIDTHS AND LENGTHS
| Widths: | 48" | 60" | 72" | 96" |
|---|---|---|---|---|
| Lengths: | 120" | 144" | 240" | |
| * Call for availability on all sizes. | ||||
Plate Sizes in Millimetres and Delivery Condition
- Thickness6.35 – 76.2 mm
- Width1219 – 2438 mm
- Length3048 – 6096 mm
These are the inch sizes from the tables above converted to millimetres. They describe the range offered, not the size of every plate in stock; send metric sizes if your drawing uses them. Manganese steel plate is supplied water-quenched in the austenitic condition at about 200–250 BHN, and gains hardness only in service.
Grade Names and Identifiers
| Name or system | Designation | Note |
|---|---|---|
| Material number | 1.3401 | European number for X120Mn12 |
| Steel name | X120Mn12 / X120Mn13 | About 1.2% C and 12–13% Mn |
| Trade names | Hadfield, Mn13, 12–14% manganese | Common names for the same steel family |
| AFNOR | Z120M12 | French designation, cited on our X120MN12 page |
| ASTM A128 | Grade B2 and others | A specification for manganese steel castings, used as a chemistry reference for plate |
ASTM A128 covers castings rather than rolled plate, so manganese steel plate is normally ordered by material number 1.3401 or by name, with chemistry and properties confirmed on the mill certificate. Our product pages quote slightly different chemistry ranges; if your drawing sets carbon or manganese limits, state them on the enquiry.
Cut-to-Size Plates and Wear Parts
Manganese steel plate can be cut to size and shape to your drawings through our cutting services, including plasma cutting, and supplied as wear plate liners. Because it work-hardens under the tool, holes and profiles are best cut rather than machined. Send the drawing, thickness, quantity, hole positions and tolerances.
Testing, Material Documents and Traceability
State the certificate type and test scope with the RFQ. A mill test certificate for the plate and the company's quality-system certification are different documents.
| Requirement | What to identify in the order |
|---|---|
| Material certificate | EN 10204 3.1 or 3.2 as required, showing chemistry, delivered hardness and mechanical results |
| Chemistry | Carbon and manganese limits, if your drawing sets them |
| Heat traceability | Heat or plate number on the plate and certificate; transfer to cut pieces where required |
| Inspection | Buyer or third-party inspection, dimensional checks and report format |
Review our Quality Policy and include your project inspection requirements in the enquiry.
Why Source Manganese Steel Plates from Champak Industries?
Our Mumbai service centre supplies manganese steel plate alongside abrasion resistant and high tensile plate, so one enquiry can compare materials for the same wear part. Plates can be cut to size and shape to your drawings, and supplied for India or export with the documents you need. Read our Company Profile for the wider supply offering.
Manganese Steel Plate Price and Quotation
Price depends on the grade, thickness, plate size, quantity, cutting, testing, inspection, packing and destination. Cut parts with many profiles or holes cost more to process because of the steel's work-hardening. Send a complete requirement for a quotation stating the price basis, tax/freight treatment and validity.
Domestic Dispatch and Export Requirements
For domestic orders, give the delivery address and unloading requirements. For exports, specify the destination, delivery terms, packing and marking instructions and the shipping documents required, with your required delivery date. Cut parts can be marked and packed by part number on request.
We Supply Manganese Steel Plates in listed cities in India
Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Dehradun, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Bhadravati, Chattisgarh, Durgapur, Asansol, Hospet, Bellary, Visakhapatnam, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Stainless Steel Pipe dealers in Salem, Amritsar, Noida, Kochi (Cochin), Mangalore, Indore, Vadodra, Bhubaneswar, Bikaner, Bhavnagar, Tirupur, Ankleshwar, Warangal, Agartala, Thoothukudi, Stainless Steel Pipe suppliers in Pune, We offer fastest delivery in India including Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot, Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh, Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry, Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya, Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram, Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi, Uttar Pradesh in India.
Location note: The phrases “Stainless Steel Pipe dealers in Salem” and “Stainless Steel Pipe suppliers in Pune” in the list above refer to the cities of Salem and Pune. This page does not cover stainless steel pipe.
We Supply and Export in listed Country
United States of America, Malaysia, UAE, Indonesia, Saudi Arabia, Iran, Qatar, India, China, United Kingdom, Singapore, Canada, Thailand, South Korea, Turkey, Philippines, Egypt, Germany, Italy, Japan, Russia, Vietnam, Australia, South Africa, Portugal, Morocco, Costa Rica, Kazakhstan, Netherlands, Mexico, Brazil, France, Spain, Taiwan, Nigeria, Bangladesh, Kuwait, Iraq, Ukraine, Poland, Jordan, Romania, Oman, Hong Kong, Venezuela, Colombia, Norway, Chile, Trinidad & Tobago, Greece, Czechia, Belgium, Sri Lanka, Cyprus, Angola, Myanmar (Burma), United Kingdom, Canada, South Korea, Thailand, Netherlands, Spain, Turkey, Australia, Mexico, Pakistan, Vietnam, Brazil, Philippines, France, Taiwan, Poland, South Africa, Russia, Nigeria, Kuwait, Czechia, Norway, Romania, Egypt, Oman, Sweden, Belgium, Hong Kong, Israel, Colombia, Switzerland, Denmark, Finland, Argentina, Venezuela, Peru, Ukraine, Chile, Bangladesh, Portugal, Ireland, Austria, Algeria, Greece, Iraq, New Zealand, Slovakia, Hungary, Kazakhstan, Slovenia, Lithuania, Serbia, Sri Lanka, Bahrain, Bulgaria, Morocco, Tunisia, Croatia, Jordan, Ecuador, Trinidad & Tobago, Estonia, Azerbaijan, Ghana, Lebanon, Cyprus, Dominican Republic, Latvia, Libya, Costa Rica, Cambodia, Macedonia (FYROM), Belarus, Jamaica, Palestine, Turkmenistan
Frequently Asked Questions About Manganese Steel Plates
01What does the Manganese Steel Plates range include?
The range covers 12–14% manganese (Hadfield) plate, listed as 12-14% Manganese Steel, X120Mn12 (1.3401), Mn13 and Hadfield manganese plate. These are names for the same austenitic manganese steel family.
02Is Hadfield steel the same as X120Mn12 and Mn13?
They describe the same family of about 1.2% carbon, 12–14% manganese austenitic steel. Chemistry limits differ slightly between sources, so state any limits your drawing requires.
03How does manganese steel work-harden?
Repeated impact or heavy pressure hardens the surface layer from about 200–250 BHN to 500 BHN or more, while the core stays tough. Without impact, the surface hardens very little.
04Should I use manganese steel or AR plate?
Use manganese steel for heavy, repeated impact such as crusher jaws, hammers and grizzly bars. For sliding abrasion with little impact, such as chutes and liners, quenched AR plate is usually more suitable.
05Is manganese steel plate magnetic?
In the delivered austenitic condition it is essentially non-magnetic; our product pages list a magnetic permeability of about 1.002. This makes it useful near magnetic separators.
06What plate sizes are available?
Thicknesses from 1/4" to 3" (6.35–76.2 mm), widths of 48" to 96" and lengths of 120" to 240" are listed. Call or send the exact size to confirm availability.
07Can manganese steel plate be welded and cut?
Yes, with low heat input, no preheat, cool interpass conditions and austenitic manganese consumables. Thermal cutting needs the same care, as overheating reduces toughness.
08Can manganese steel be drilled or machined?
Only with difficulty, because it work-hardens under the cutting tool. Holes and profiles are normally cut by plasma or other cutting methods; send a drawing so they can be included.
09Which certificates should my RFQ request?
Request the certificate type, such as EN 10204 3.1, showing chemistry, delivered hardness and mechanical results, plus heat traceability and any inspection your specification calls for.
10How do I obtain a price and delivery offer?
Send the grade, dimensions, quantity, cutting drawing, documents, destination and required date. Include export packing and delivery terms when relevant.
