Champak Industries is one of prominent supplier of Aluminum Plates and sheets in Mumbai –India. We large stock of 1050A ALUMINIUM PLATE, 1350 ALUMINIUM PLATE, 2024 ALUMINIUM PLATE, 2124 ALUMINIUM PLATE, 2219 ALUMINIUM PLATE, 3003 ALUMINIUM PLATE, 5052 ALUMINIUM PLATE, 5083 ALUMINIUM PLATE, 5086 ALUMINIUM PLATE, 5154 ALUMINIUM PLATE, 5454 ALUMINIUM PLATE, 5456 ALUMINIUM PLATE, 5754 ALUMINIUM PLATE, 6061 T6 ALUMINIUM PLATE, 7050 ALUMINIUM PLATE, 7075 ALUMINIUM PLATE, 7175 ALUMINIUM PLATE, 7475 ALUMINIUM PLATE.
Alloys and stock tables: The stock tables below list 1000, 3000 and 5000 series sheet, plate and treadplate. The 2000, 6000 and 7000 series alloys named above, such as 2024, 6061-T6 and 7075, are heat-treatable engineering and aerospace alloys described on their own pages; confirm the temper, specification and size available for these in your quotation.
Aluminium Plates: Quick Buying Information
| Buying item | Information to specify |
|---|---|
| Alloy and temper | For example 5083-H116, 5052-H32, 6061-T6 or 7075-T651. The temper sets the strength as much as the alloy does. |
| Specification | ASTM B209 / ASME SB209 for general plate and sheet, ASTM B928 for marine plate, or the AMS or EN standard your drawing names. |
| Form and dimensions | Plate, sheet, coil, strip or treadplate; thickness × width × length in mm; number of pieces or total weight. |
| Finish and processing | Mill or other finish, PE coating, and plasma-cut profiles to your drawing. |
| Documents | Mill certificate (for example EN 10204 3.1), classification-society approval for marine use, inspection and destination. |
Explore Our Aluminium Plate Range
Marine · 5xxx

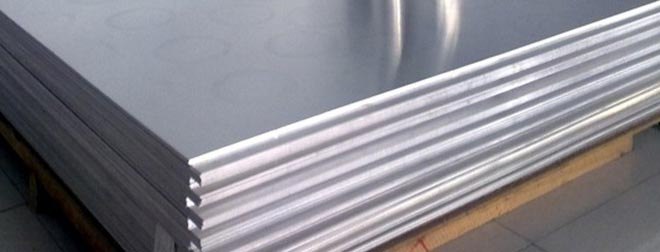

5083 Aluminium Plates
High-strength non-heat-treatable marine alloy, usually in H116 or H321 temper. Our page lists plate from 0.250" to 2.00" thick, certified to ASTM B209 and ASME SB209.
View 5083 Aluminium Plates
5xxx

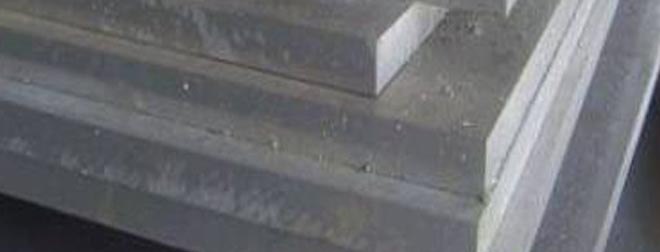

5052 Aluminium Plates
Stronger than 3003 with good salt-water resistance; easy to form, weld and finish.
View 5052 Aluminium Plates
6xxx · T6

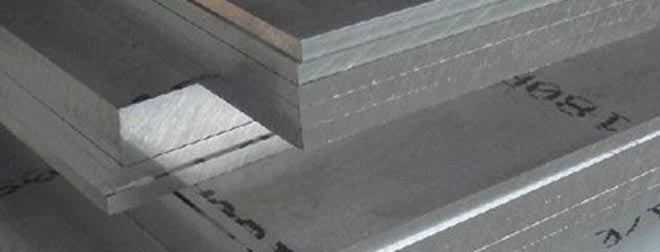

6061 T6 Aluminium Plates
Versatile Al-Mg-Si alloy with medium strength, good machinability and weldability, for tooling plate and structures.
View 6061 T6 Aluminium Plates
7xxx

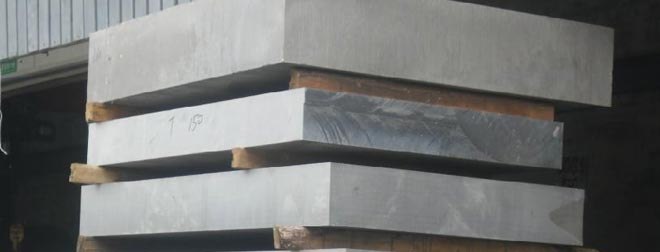

7075 Aluminium Plates
Aluminium-zinc alloy precipitation-hardened to very high strength, for airframe structures and highly stressed parts.
View 7075 Aluminium Plates
2xxx

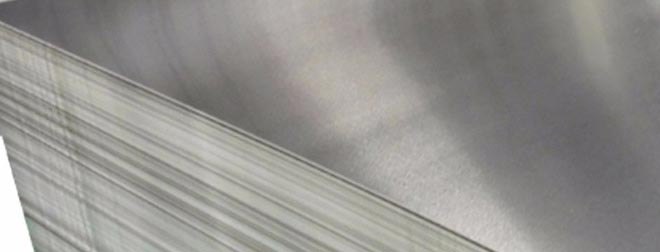

2024 Aluminium Plates
High-strength aircraft alloy with good fatigue resistance and machinability; lower corrosion resistance than 5000 series.
View 2024 Aluminium Plates
99.5% Al

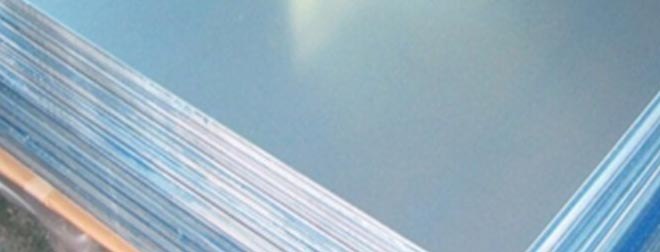

1050A Aluminium Plates
Unalloyed 99.5% aluminium for general sheet-metal work, commonly in the half-hard H14 temper.
View 1050A Aluminium Plates
5xxx

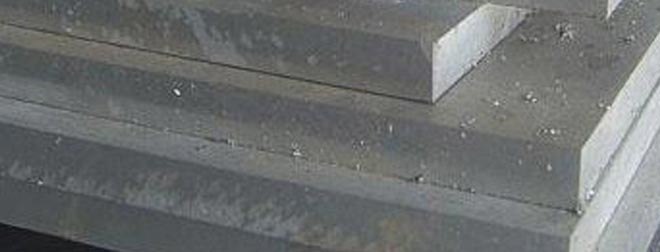

5754 Aluminium Plates
Good resistance to seawater and polluted atmospheres with high weldability, for treadplate, vehicle bodies and shipbuilding.
View 5754 Aluminium Plates
3xxx

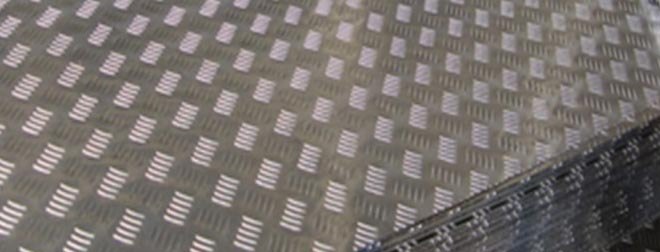

3003 Aluminium Plates
Aluminium-manganese alloy with moderate strength, easy to weld and form, used for stamped parts, catwalks and treadplate.
View 3003 Aluminium PlatesAll aluminium alloy pages by series
Aluminium stock forms and sizes
| Aluminium Sheet and Coil/Strip | |
|---|---|
| Alloy | 1145, 3003, 3004, 3105, 5005, 5052, 5251 |
| Temper | 0, H32, H34, H38 |
| Thickness (mm) | 0.5mm to 6.0mm for sheet and coil, 0.5 to 3.0 mm for strip |
| Width (mm) | 900, 1200, 1500, 2000, Customer specific width (25mm minimum) |
| Length (mm) | 1800, 2400, 3000, Customer specific length |
| Finish | Mill, Customer specific finish |
| Coating | PE Coating (not standard) |
| Plasma profile | To customer drawings |
| Aluminium Plate | |
|---|---|
| Alloy | 5005, 5052, 5083, 5186, 5454 |
| Temper | H32, H34, H116, H321 |
| Thickness (mm) | 4 to 25 |
| Width (mm) | 1200 to 2500 |
| Length (mm) | 2400 to 12000, Customer specific length |
| Finish | Mill, Customer specific finish, |
| Coating | PE Coating (not standard) |
| Plasma profile | To customer drawings |
| Aluminium Treadplate | |
|---|---|
| Alloy | 3003, 5052 |
| Temper | 3003 - H22, 3003 - H224, 5052 - 0 |
| Thickness (mm) | 1.6mm to 6.0mm |
| Width (mm) | 1200, 1500mm |
| Length (mm) | 2400, 3000, 3600, 6000mm |
| Finish | 5052 - 5 Bar - Mill finish, 3003 - 1 Bar Propeller - Bright finish |
- Plate thickness4 – 25 mm
- Plate width1200 – 2500 mm
- Plate length2400 – 12000 mm
Sizes and tempers: These figures summarise the Aluminium Plate table above and describe the range offered, not the size of every plate in stock. Our 5083 page also lists thicker plate, from 0.250" to 2.00" (about 6–51 mm). “0” in the temper rows is the annealed temper, written as the letter O.
Advantages of using Aluminium
- Light weight - approximately one-third the density of steel
- Strength - some alloys can be substantially strengthened by work or by heat treatment
- Workability - easily formed, machined and welded
- Corrosion resistance - varies depending on the alloy and the best resist marine exposure
- Non-toxic - often used in contact with food
- Non-magnetic and non-sparking
- Electrical conductivity - high
- Thermal conductivity - high
- Reflectivity - bright finish options available.
Compare Aluminium Alloy Series Before Purchasing
| Series | Strength | Corrosion and welding | Typical selection focus |
|---|---|---|---|
| 1000 (1050A, 1350) | Low | Very good corrosion resistance; easy to weld | Sheet-metal work, electrical conductors |
| 3000 (3003) | Low to moderate | Good; easy to weld and form | Stamped parts, treadplate, general fabrication |
| 5000 (5052, 5083, 5754…) | Moderate to high, by cold work | Very good in marine exposure; weldable | Ship and boat building, tankers, vehicle bodies |
| 6000 (6061) | Medium, by heat treatment | Good; weldable with some strength loss at the weld | Structures, machined parts, tooling plate |
| 2000 / 7000 (2024, 7075…) | High to very high, by heat treatment | Lower corrosion resistance; generally not welded | Aerospace and highly stressed machined parts |
General characteristics for orientation. Properties depend on the temper and thickness; check the values in your specification.
Specification
Champak Industries Stock Aluminium flat rolled product is most commonly specified to ASTM B209M. Product designated as plate for ship building in very specific alloys and tempers in compliance with ASTM B928M.
Alloy Code Derivative
| Alloy series | Major alloying element |
|---|---|
| 1. | Pure aluminium (99.0% and greater) |
| 2. | Copper is major addition |
| 3. | Manganese is major addition |
| 4. | Silicon is major addition |
| 5. | Magnesium is major addition |
| 6. | Magnesium and silicon are major additions |
| 7. | Zinc is the major addition |
| 8. | Other Alloys |
Understanding an Alloy code
an alloy code is made up of 4 digits e.g. 5052 where:
- 5 = major alloying element i.e. magnesium
- 0 = Indicates changes to minor alloying elements i.e. no changes to original alloy since it was introduced
- 52 = Alloy identification number i.e. identifies the chemical composition of this alloy
Alloy Code derivative used in Rolled Products
| Alloy | Example Alloy |
|---|---|
| 1. | 1145 |
| 3. | 3003 |
| 5. | 5052 |
Heat Treatable and Non-heat Treatable Alloys
| Alloy | Treatable/Non-treatable |
|---|---|
| 1. | Non-heat treatable |
| 2. | Heat treatable |
| 3. | Non-heat treatable |
| 5. | Non-heat treatable |
| 6. | Heat treatable |
| 7. | Heat treatable |
Non-heat treatable alloys can be hardened by cold work. The degree of work hardening is designated by the Temper. Heat treatable alloys (the 2000, 6000, and 7000 series) are able to be solution treated and then age-hardened.
Temper Designation Systems H Tempers
| Temper | Hardness |
|---|---|
| 0 | Soft |
| H?2 | 1/4 hard |
| H?4 | 1/2 hard |
| H?6 | 3/4 hard |
| H?8 | Hard |
Where "?" can be read as:
- 1 = As rolled - no final anneal e.g. H12
- 2 = Strain hardened and then partially annealed e.g. H24
- 3 = Strain hardened and then stabilised (at a lower temperature) e.g. H34
T tempers: The table covers H (strain-hardened) tempers for non-heat-treatable alloys. Heat-treatable alloys use T tempers: for example T6 is solution heat-treated and artificially aged, and T651 is T6 stress-relieved by stretching, common for machined plate.
Three-Digit H Tempers
For marine applications there are specific tempers in select high magnesium alloys. H116 and H321 tempers have virtually identical properties. H116 tempers are strain hardened as final operations and H321 tempers are thermally stabilized.
Applications and Service Requirements
| Application | Alloys to evaluate | Selection input |
|---|---|---|
| Ship and boat hulls, decks | 5083-H116 / H321, 5086, 5456 | ASTM B928, class approval and thickness |
| Vehicle bodies and tankers | 5052, 5083, 5454, 5754 | Forming, welding and operating temperature |
| Flooring and walkways | Treadplate in 3003 or 5052 | Pattern, thickness and slip resistance |
| Machined parts and tooling plate | 6061-T651, 7075-T651 | Strength, flatness and machining allowance |
| Aerospace structures | 2024, 2124, 7050, 7075, 7475 | AMS specification, temper and traceability |
| Electrical conductors and busbars | 1350, 1050A | Conductivity and temper |
These are material application examples. Final selection depends on the actual service conditions and specification.
Cut-to-Size Plates and Profiles
Aluminium plate can be cut to size and plasma-profiled to your drawings, as listed in the stock tables above, through our cutting services and plasma cutting. Send the alloy, temper, thickness, drawing, quantity and tolerances, and tell us if a PE coating must stay on during cutting.
Testing, Material Documents and Traceability
State the certificate type and test scope with the RFQ. A mill test certificate for the plate and the company's quality-system certification are different documents.
| Requirement | What to identify in the order |
|---|---|
| Material certificate | EN 10204 3.1 or 3.2, showing alloy, temper, chemistry and mechanical results |
| Marine approval | Classification society (for example DNV, ABS or LR) and ASTM B928 corrosion tests where required |
| Traceability | Cast or lot number on the plate and certificate; transfer to cut pieces where required |
| Inspection | Buyer or third-party inspection, flatness checks and report format |
Review our Quality Policy and include your project inspection requirements in the enquiry.
Why Source Aluminium Plates from Champak Industries?
Our Mumbai service centre lists 18 aluminium alloys, from pure and marine grades to aerospace alloys, in plate, sheet, coil, strip and treadplate. Plates can be cut and profiled to your drawings, so one enquiry can cover material, processing and documentation for India or export. Read our Company Profile for the wider supply offering.
Aluminium Plate Price and Quotation
Price depends on the alloy, temper, thickness, size, quantity, finish, coating, cutting, certification, packing and destination. Heat-treatable aerospace alloys generally cost more than 1000, 3000 and 5000 series. Send a complete requirement for a quotation stating the price basis, tax/freight treatment and validity.
Domestic Dispatch and Export Requirements
For domestic orders, give the delivery address and unloading requirements. For exports, specify the destination, delivery terms, packing and marking instructions and the shipping documents required. Aluminium surfaces scratch easily, so state any interleaving or protective packing you need.
We Supply Aluminium Plates in listed cities in India
Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Dehradun, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Bhadravati, Chattisgarh, Durgapur, Asansol, Hospet, Bellary, Visakhapatnam, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Stainless Steel Pipe dealers in Salem, Amritsar, Noida, Kochi (Cochin), Mangalore, Indore, Vadodra, Bhubaneswar, Bikaner, Bhavnagar, Tirupur, Ankleshwar, Warangal, Agartala, Thoothukudi, Stainless Steel Pipe suppliers in Pune, We offer fastest delivery in India including Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot, Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh, Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry, Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya, Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram, Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi, Uttar Pradesh in India.
Location note: The phrases “Stainless Steel Pipe dealers in Salem” and “Stainless Steel Pipe suppliers in Pune” in the list above refer to the cities of Salem and Pune. This page does not cover stainless steel pipe.
We Supply and Export in listed Country
United States of America, Malaysia, UAE, Indonesia, Saudi Arabia, Iran, Qatar, India, China, United Kingdom, Singapore, Canada, Thailand, South Korea, Turkey, Philippines, Egypt, Germany, Italy, Japan, Russia, Vietnam, Australia, South Africa, Portugal, Morocco, Costa Rica, Kazakhstan, Netherlands, Mexico, Brazil, France, Spain, Taiwan, Nigeria, Bangladesh, Kuwait, Iraq, Ukraine, Poland, Jordan, Romania, Oman, Hong Kong, Venezuela, Colombia, Norway, Chile, Trinidad & Tobago, Greece, Czechia, Belgium, Sri Lanka, Cyprus, Angola, Myanmar (Burma), United Kingdom, Canada, South Korea, Thailand, Netherlands, Spain, Turkey, Australia, Mexico, Pakistan, Vietnam, Brazil, Philippines, France, Taiwan, Poland, South Africa, Russia, Nigeria, Kuwait, Czechia, Norway, Romania, Egypt, Oman, Sweden, Belgium, Hong Kong, Israel, Colombia, Switzerland, Denmark, Finland, Argentina, Venezuela, Peru, Ukraine, Chile, Bangladesh, Portugal, Ireland, Austria, Algeria, Greece, Iraq, New Zealand, Slovakia, Hungary, Kazakhstan, Slovenia, Lithuania, Serbia, Sri Lanka, Bahrain, Bulgaria, Morocco, Tunisia, Croatia, Jordan, Ecuador, Trinidad & Tobago, Estonia, Azerbaijan, Ghana, Lebanon, Cyprus, Dominican Republic, Latvia, Libya, Costa Rica, Cambodia, Macedonia (FYROM), Belarus, Jamaica, Palestine, Turkmenistan
Frequently Asked Questions About Aluminium Plates
01Which aluminium alloys do you supply?
The range covers 18 alloys: 1050A, 1350, 2024, 2124, 2219, 3003, 5052, 5083, 5086, 5154, 5454, 5456, 5754, 6061-T6, 7050, 7075, 7175 and 7475, in plate, sheet, coil, strip and treadplate forms.
02Which alloy is best for marine use?
5000 series alloys such as 5083, 5086 and 5456 in H116 or H321 temper are used for hulls and decks, ordered to ASTM B928. Confirm classification-society approval if your vessel needs it.
03What is the difference between 5083 and 6061?
5083 gains strength by cold work and keeps it well after welding, with very good seawater resistance. 6061 is heat-treated (for example T6) for higher strength and machinability, but loses strength near welds.
04What do H32, H116 and T6 mean?
H tempers are strain-hardened: H32 is strain-hardened and stabilised to quarter-hard, and H116 is a marine temper. T6 means solution heat-treated and artificially aged, for heat-treatable alloys.
05What plate sizes are available?
The plate table lists 4–25 mm thick, 1200–2500 mm wide and 2400–12000 mm long; sheet and coil from 0.5 to 6.0 mm; and treadplate from 1.6 to 6.0 mm. Send the exact alloy and size to confirm availability.
06Which specification should I order to?
ASTM B209 (or ASME SB209) covers general aluminium plate and sheet, and ASTM B928 covers marine 5000 series plate. Aerospace alloys are often ordered to AMS specifications; name the one your drawing requires.
07Can aluminium plate be cut to size?
Yes. Plates can be cut to size and plasma-profiled to your drawings. Send the drawing, thickness, quantities and tolerances.
08Which alloys can be welded?
1000, 3000, 5000 and 6000 series alloys are generally weldable. 2000 and 7000 series high-strength alloys such as 2024 and 7075 are normally joined mechanically rather than welded.
09Which certificates should my RFQ request?
Request a mill certificate such as EN 10204 3.1 showing alloy, temper, chemistry and mechanical results, plus classification-society approval for marine use and any third-party inspection.
10How do I obtain a price and delivery offer?
Send the alloy, temper, specification, form, dimensions, quantity, finish, cutting needs, documents, destination and required date.
