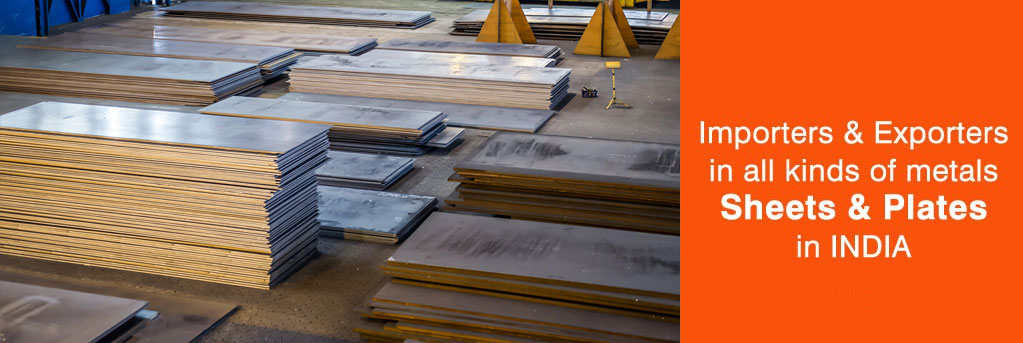

- DSQ Plates, DSQ Kettle Plates, DSQ Vesssel Plates, DSQ Tank Plates, Supplier and Exporter Mumbai-India
- Table of Contents
- 1. What is DSQ plate?
- 2. Features and benefits of DSQ Plates
- 3. Fabrication & Testing of DSQ Plates
- 4. DSQ Plates Specifications
- 5. DSQ Steel Plates Chemical Composition
- 6. DSQ Steel Plates Mechanical Properties
- 7. Types of DSQ Plates in Stock
- 8. Prices of DSQ Plates
- 9. Other Types of DSQ Steel Plates
- 10. Applications of DSQ Plates in Various Industries
- 11. Market Area of Champak Industries
Contents list: The list links to the numbered sections of this page. The last link, “Market Area of Champak Industries”, goes to the final section.
DSQ Plate: Purchasing Specification
| Requirement | What to specify |
|---|---|
| Grade | DSQ (dead soft quality) plate; state the supplying mill or standard your kettle design names. |
| Thickness | Kettle plate is described as 50 mm; the page lists 5–150 mm. |
| Dimensions | Width, length and number of plates, or a cutting drawing. |
| Supply condition | As rolled, normalized, vacuum degassed or simulated PWHT, as your specification requires. |
| Documents | Mill test certificate (EN 10204 3.1) with chemistry and mechanical properties. |
What is DSQ plate?
The galvanizing kettle is manufactured using plates that are 50 mm thick and are made from low carbon, low silicon, and high-quality materials known as "DSQ Plates" (Dead Soft Quality) which are specifically designed for galvanizing tanks. In addition to this, the furnace is equipped with special shaped refractories, standard refractories, insulation materials, combustion equipment like burners and blowers, as well as heating and pumping units, temperature indicators with thermocouples, and auto control systems.
Reading the description: DSQ plate is used to make galvanizing kettles. The rest of this paragraph describes the furnace around a kettle (burners, refractories, hot plate and catch basin), not the plate.
The oil-fired galvanizing furnace is designed with an assembly that includes special shaped refractory drawings, as well as the erection and commissioning of the furnace. The furnace also includes a hot plate for drying materials and a catch basin for collecting molten zinc in the event of a puncture of the kettle.
Champak Industries is a reputable supplier of high-quality products, including plates in various alloy types. We not only manufacture but also export our products. As a wholesaler and exporter of Dead Soft Quality Steel Plates, we ensure that all our products are manufactured according to both national and international standards.
Our plates are available in different sizes, shapes, and thicknesses. DSQ Plates, specifically, are available in various dimensions, designations, grades, alloys, specifications, and standards. Among all the types of plates we offer, DSQ Steel Plates are particularly popular in both global and domestic markets due to their exceptional features that make them suitable for various application industries.
DSQ Plate Supplier- DSQ steel high-strength, low-alloy with excellent weldability, formability and corrosion resistance. Ideal for galvanizing tanks. Get DSQ Plate from Champak Industries, Mumbai, India.
Strength: DSQ is not a high-strength, low-alloy steel: it is soft, low-carbon steel with 245 MPa minimum yield. Its use in kettles depends on low silicon content for zinc resistance, not on strength or corrosion resistance.
Features and Benefits of DSQ Plates
DSQ Carbon Steel Plates exhibit a damage-free mask layer, excellent reproduction, layer intermediate reserve depth, smooth tonal generation, steep relief shoulders, ideal for outstanding ink transfer, and smooth tonal gradation.
Copied text: This sentence comes from a description of printing plates (“mask layer”, “ink transfer”, “tonal gradation”) and does not describe DSQ steel plate. Ignore it.
The plate offers greater reliability in both high and low temperature conditions.
It is a long-lasting product that can be utilized for extended periods.
The plate is easy to fabricate, install, and weld, and possesses good formability.\
The plate also offers higher resistance properties such as corrosion resistance, pitting and crevice resistance, oxidation resistance, and resistance to chloride stress cracking corrosion.
Resistance claims: Resistance to chloride stress cracking, pitting and oxidation are properties of stainless steels, not of low-carbon plate. DSQ plate resists molten zinc because of its low silicon, but it is not a corrosion-resistant steel.
Fabrication & Testing of DSQ Plates
1. Fabrication
The production of DSQ plates is carried out using high-quality alloys sourced from reputable mills. The production process adheres to industry standards and quality norms, and is closely supervised by professional experts and a dedicated quality control team. The production process involves cutting, machining, drilling, forming, and grinding.
Due to the effective fabrication process using high-quality alloys, DSQ plates exhibit excellent properties such as high tensile strength, flexibility, durability, dimensional accuracy, fine surface finishes, longevity, and the ability to withstand heavier loads. In addition, these plates have excellent resistance to corrosion, stress corrosion cracking, pitting, oxidation, and general corrosion.
2. Testing
To ensure the high quality of the plates, they undergo various tests before shipping to buyers. These tests include third-party inspection, flattening test, PMI test, ultrasonic test, V-notch impact test, and high-temperature tension test.
DSQ Plates Specifications
| Specification | Value |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Impact Test | -52°C |
| Manufacturing Process | Hot-Rolled (HR) |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement |
Reading the specification: An impact test at −52 °C is stated; confirm any impact requirement with the mill before ordering, since kettle plate is normally ordered by chemistry and thickness.
DSQ Steel Plates Chemical Composition
| C | Mn | P | Si | S |
|---|---|---|---|---|
| 0.04 - 0.06 | 0.230 - 0.025 | 0.021 - 0.027 | 0.021 - 0.027 | 0.037 - 0.050 |
Chemistry values: The ranges look garbled: manganese “0.230–0.025” is reversed, and silicon and phosphorus show the same range. Ask for the mill’s chemistry; for a kettle, silicon is the key element.
DSQ Steel Plates Mechanical Properties
| Yield Strength (MPa min) | Ultimate Tensile Strength (MPa min) | %Elongation (min) |
|---|---|---|
| 245 | 375 | 25 |
Types of DSQ Plates in Stock
| DSQ Plate Supplier | DSQ Plate Exporter in India |
| DSQ Boiler Plates Stockists | DSQ BQ Plates |
| DSQ 50mm thick Plates | DSQ Boiler Quality Steel Plates |
| DSQ Plate Manufacturers | Low carbon Steel DSQ Plates Stockholder |
| High Quality DSQ Plate | Industrial DSQ Plates |
| High resistance DSQ Steel Plates | DSQ 50 Plate Distributor in Mumbai |
| Dead Soft Quality Steel Plate Trader in India | D.S.Q Plates Dealer in India |
Prices of DSQ Plates
- DSQ Boiler Steel Plate Stock Price: On request, in US dollars / INR per metric tons (FOB)
- DSQ Galvanizing Steel Plate Price: On request, in US dollars / INR per metric tons (FOB)
- SAIL DSQ Steel Plates Price: On request, in US dollars / INR per metric tons (FOB)
- Galvanizing Tank/Kettle DSQ Steel Plate Price: On request, in US dollars / INR per metric tons (FOB)
- DSQ Low Carbon Steel Plate Price: On request, in US dollars / INR per ton (FOB)
- DSQ BQ Steel Plates Price: On request, in US dollars / INR per ton (FOB)
Other Types of DSQ Steel Plates
Champak Industries distributes a range of DSQ steel plates, including DSQ Boiler Quality Hot Rolled Plates, Dead Soft Quality Carbon Steel Plates, DSQ High Tensile Steel Plates, and high resistance DSQ Steel Plates. These DSQ plates are available in India and are suitable for various industrial applications. As a DSQ Steel Plates Supplier in Mumbai, we offer a variety of dead soft quality plates, D.S.Q Steel Plates, and DSQ Boiler Quality Steel Plates. The company also stocks DSQ BQ Plates and DSQ Plates for industrial use. DSQ HR Steel Plates are among the top-selling products exported by Champak Industries from India. The DSQ Boiler Quality Plates Exporter is located in Mumbai, India, and offers a range of Industrial DSQ Steel Plates, including Dead Soft Quality High Tensile Steel Plates. These plates are used in a variety of applications and industries, including construction and engineering. We provide high-quality DSQ Boiler Quality Plates and is committed to meeting the needs of its customers. Whether you need DSQ Plates in India or around the world, Champak Industries is the go-to source for all your DSQ Steel Plate needs.
Applications of DSQ Plates in Various Industries
DSQ plates are used in various industries due to their unique properties such as high tensile strength, flexibility, durability, and resistance to corrosion and stress corrosion cracking. Some of the common industries where DSQ plates are used include:
Construction industry: DSQ plates are used in the construction of buildings, bridges, and other structures due to their high strength and durability.
Shipbuilding industry: DSQ plate is used in the construction of ships and other marine structures due to their corrosion resistance properties.
Oil and gas industry: Used in the construction of pipelines and storage tanks in the oil and gas industry due to their high resistance to corrosion.
Aerospace industry: DSQ plates are used in the aerospace industry for the construction of aircraft and spacecraft due to their lightweight and high strength properties.
Applications: Kettle, boiler and tank plate is the plate’s real use. The aerospace, defense, automotive, shipbuilding and food-processing uses in this list are general statements not specific to DSQ plate.
Defense industry: DSQ plate is used in the defense industry for the construction of armoured vehicles and tanks due to their high strength and durability properties.
Automotive industry: In automotive industry, DSQ plates are used for manufacturing vehicle parts and components that require high strength and durability.
Power generation industry: Used in the power generation industry for the construction of power plants and turbines due to their high temperature resistance properties.
Mining industry: DSQ plates are used in the mining industry for the construction of heavy machinery and equipment due to their high resistance to wear and tear.
Chemical industry: DSQ plates are used in the chemical industry for the construction of chemical processing equipment due to their high resistance to corrosion and chemical reactions.
Food processing industry: DSQ plates are used in the food processing industry for the construction of equipment and machinery that come into contact with food products due to their hygienic properties.
In addition to the above industries, DSQ plates are also used in various other applications such as in the manufacturing of pressure vessels, heat exchangers, and storage tanks, among others. The unique properties of DSQ plates make them a versatile and widely used material in the industrial sector.
Market Area of Champak Industries
Champak Industries manufacturing and exporting high quality DSQ Plates worldwide.
Champak Industries Supplies DSQ Plates to these Indian Cities.
Mumbai | Pune | Ahmedabad | Bengaluru | Chennai | Delhi | Kolkata | Hyderabad | Agra | Ajmer | Aligarh | Amravati | Amritsar | Asansol | Aurangabad | Bareilly | Belgaum | Bhavnagar | Bhiwandi | Bhopal | Bhubaneswar | Bikaner | Bilaspur | Bokaro Steel City | Chandigarh | Coimbatore | Cuttack | Dehradun | Dhanbad | Bhilai | Durgapur | Erode | Faridabad | Firozabad | Ghaziabad | Gorakhpur | Gulbarga | Guntur | Gwalior | Gurugram | Guwahati | Hamirpur | Hubli–Dharwad | Indore | Jabalpur | Jaipur | Jalandhar | Jalgaon | Jammu | Jamnagar | Jamshedpur | Jhansi | Jodhpur | Kakinada | Kannur | Kanpur | Karnal | Kochi | Kolhapur | Kollam | Kozhikode | Kurnool | Ludhiana | Lucknow | Madurai | Malappuram | Mathura | Mangalore | Meerut | Moradabad | Mysore | Nagpur | Nanded | Nashik | Nellore | Noida | Patna | Puducherry | Purulia | Prayagraj | Raipur | Rajkot | Rajamahendravaram | Ranchi | Rourkela | Ratlam | Salem | Sangli | Shimla | Siliguri | Solapur | Srinagar | Surat | Thanjavur | Thiruvananthapuram | Thrissur | Tiruchirappalli | Tirunelveli | Tiruvannamalai | Ujjain | Vijayapura | Vadodara | Varanasi | Vasai-Virar City | Vijayawada | Visakhapatnam | Vellore | Warangal
Champak Industries supplying DSQ Plates to these locations across the world :
African Countries
South Africa , Nigeria, Kenya, Ghana, Ethiopia, Tanzania, Johannesburg, Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, Democratic Republic of the Congo, Côte d'Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Gabon, Gambia, Guinea, Guinea-Bissau, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Sudan, Sudan, Swaziland, Togo, Tunisia, Uganda, Zambia, Zimbabwe.
Gulf and other Countries
Oman, Qatar, Kuwait, Saudi Arabia, Dubai, Bahrain, Iran, United Arab Emirates, Australia, Sydney, Queensland, Melbourne, Perth, Adelaide, New Zealand, Auckland, Wellington, Hamilton.
Asian Countries
Afghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, Uzbekistan, Vietnam, Yemen
South American Countries
Argentina, Ecuador, Suriname, Bolivia, Brazil, Guyana, Uruguay, Chile, Colombia, Paraguay, Peru, Venezuela
DSQ Plate Compared With High Tensile Plate
DSQ plate is a soft, low-carbon steel chosen for galvanizing kettles, where zinc attack and thermal cycling matter more than strength. It is listed in this part of the product menu but it is not a high tensile grade.
| Property | DSQ plate (from the page) | High tensile plate |
|---|---|---|
| Minimum yield | 245 MPa | 350 MPa and above (S690QL: 690 MPa) |
| Minimum tensile | 375 MPa | 490 MPa and above |
| Typical purpose | Galvanizing kettles, boilers and tanks | Load-bearing structures, cranes, vehicles |
The high tensile column is for comparison; see the product pages in this range for the figures of each grade.
Cutting, Fabrication and Welding
Champak Industries describes full and part plate/profile supply and a plasma-cutting service. Send drawings, quantities, tolerances and edge preparation for your parts. Follow the mill’s recommendations for forming, welding and heat treatment of this grade.
Testing, Inspection Documents and Traceability
| Requirement | What to identify in the order |
|---|---|
| Mill test certificate | EN 10204 3.1 showing brand and grade, heat number, chemistry and mechanical properties |
| Impact test | Charpy test temperature and minimum energy, if required |
| Ultrasonic test | Standard and acceptance class, if required |
| Traceability | Heat and plate number transferred to cut pieces |
See the company’s Quality Policy for its published policy.
Source DSQ Plate from Champak Industries
Champak Industries’ company profile records its establishment in Mumbai in 1978 and its stockist, import and export activities. DSQ Plate can be requested together with other plates in the High Tensile Plates range.
What Determines the Quotation?
Grade and brand, thickness, plate size, quantity, cutting, testing and packing all affect the quotation. Say whether pricing is needed per kilogram, per plate or per finished piece.
Packing, Dispatch and Export Requirements
Give the delivery address, required date and unloading constraints. For export orders, include the destination port, delivery terms and document list.
DSQ Plate: Frequently Asked Questions
01What is DSQ Plate?
DSQ (dead soft quality) plate is a low-carbon, low-silicon steel plate used for galvanizing kettles, boilers and tanks, listed here with a minimum yield strength of 245 MPa and minimum tensile strength of 375 MPa.
02What is DSQ plate?
Dead soft quality plate: a low-carbon, low-silicon steel used mainly for galvanizing kettles and tanks, as well as boiler and vessel plate.
03Is DSQ plate a high tensile steel?
No. The page gives a minimum yield strength of 245 MPa and tensile strength of 375 MPa, so it is a soft, low-strength steel chosen for its behaviour in molten zinc.
04Which sizes does the page list?
Width 1000–4500 mm, thickness 5–150 mm and length 3000–18000 mm, hot rolled, with the supply conditions listed on the page.
05Can DSQ plate be welded?
Yes, with a qualified procedure and consumables suited to the grade; follow the mill’s recommendations for preheat and heat input.
06Which certificate should I request?
An EN 10204 3.1 mill test certificate showing the brand and grade, heat number, chemistry and mechanical properties, plus impact results where you specify a test temperature.
07Can another brand replace DSQ plate?
Brands of the same class are comparable, not identical. Chemistry, toughness, thickness range and processing advice differ by mill, so confirm any substitution with your engineer.
08Can DSQ plate plate be cut to size?
Yes. Champak Industries lists full and part plate and profile supply and a plasma-cutting service; send drawings, quantities and tolerances with your enquiry.
09Which sizes are available?
Availability depends on the grade, mill and thickness; send the thickness, width and length you need and sizes will be confirmed at quotation.
10How do I get a price and delivery date?
Send the grade, thickness, size or cutting drawing, quantity, destination and required date through the enquiry form below, by WhatsApp or by phone.
