Champak Industries is supplier of steel plates, which provides them properties like resistance from corrosion and high durability. These steel plates are used for various general construction and industrial applications. Our plates are strongly built and non-corrosive, conforming to the defined parameters of the industry."
Corrosion claims: TISCRAL is a quenched and tempered carbon-alloy steel, not a stainless or corrosion-resistant steel. It rusts like other carbon steels, so “non-corrosive” and “rust proof” do not apply; coating or a corrosion allowance is still needed.
Available Range: Steel Plate- GRADE C45, TISCRAL, Lloyds LAS07 &SailHard Steel Plate"

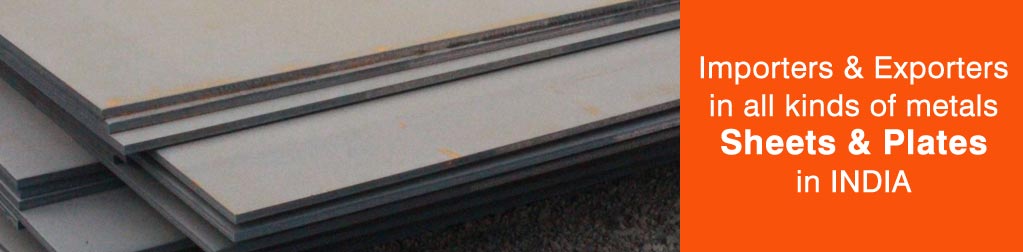

TISCRAL Plates: Purchasing Specification
| Requirement | What to specify |
|---|---|
| Grade and hardness | The named plate and the minimum or typical Brinell hardness (BHN) you need. |
| Chemistry | Where the application sets limits, ask for the mill’s chemical analysis. |
| Dimensions | Thickness × width × length and number of plates, or a cutting drawing. |
| Wear class | These plates are moderate-hardness wear grades; for 400–500 HBW, see Wear Resistant Plates. |
| Documents | Mill test certificate (EN 10204 3.1) with hardness and chemistry. |
APPLICATION:
Liner Plates
Automobile Industries
Pumps
Petrochemicals and Oil & Natural Gas
Conveyer Belts Plates
Dumber Bodies Plates
Spelling: “Dumber Bodies” means dumper bodies.
Loaders
Champak Industries range of Steel Plate- GRADE C45, TISCRAL is widely known for its quenching and tempering ability. This kind of steel is widely used various industries for general engineering purposes. This range is designed to withstand tremendous amount of weights and pressure. This steel plate is rust proof in their make and it has been made using the best technology available in the market and they have been priced at very reasonable rates in the market.
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES
| Chemical Composition | Mechanical Properties | HARDNESS-200 BHN (Min) | |||
|---|---|---|---|---|---|
| GRADE | C % Max | Min % Max | P % Max | S% Max | SI % Ma |
| SAIL HARD | 0.23 | 1.6 | 0.050 | 0.050 | 0.50 |
| AI0.10 max, Cr 0.65 max, Nb +V+Ti0.15 Max | |||||
Table: The table shows the SAILHARD grade (200 BHN minimum hardness), not TISCRAL, so TISCRAL’s own values are not given here. “Min % Max” should read Mn % max and “SI % Ma” should read Si % max.
Choosing Between the Hardness Grades
The plates in this group are chosen by hardness. The 200 and 250 BHN grades suit moderate abrasion and are easier to cut, form and weld than the 400–500 HBW plates on the Wear Resistant Plates page.
| Plate | Hardness given on its page | Typical use |
|---|---|---|
| SAILHARD | 200 BHN minimum | Liner plates, conveyors, dumper bodies, loaders |
| TISCRAL (this page) | Not stated (the page shows the SAILHARD table) | Liner plates, conveyors, dumper bodies, loaders |
| JISCRAL | Not stated | Construction machinery and mining equipment |
| LAS07 | Not stated | Liner plates, conveyors, dumper bodies, loaders |
| 200BHN | 200 BHN | Liner plates, conveyors, dumper bodies, loaders |
| 250BHN | 250 BHN | Crushers, hoppers, shovels, screens, mixers |
Ask for a datasheet for any plate whose page does not state hardness.
Related plates in this range
Cutting, Fabrication and Welding
Champak Industries describes full and part plate/profile supply and a plasma-cutting service. Send drawings, quantities, tolerances and edge preparation for your parts. High-strength plate needs controlled preheat, interpass temperature and heat input when welding, and forming limits depend on the grade and thickness; follow the mill’s recommendations.
Testing, Inspection Documents and Traceability
| Requirement | What to identify in the order |
|---|---|
| Mill test certificate | EN 10204 3.1 showing brand and grade, heat number, chemistry and mechanical properties |
| Impact test | Charpy test temperature and minimum energy, if required |
| Ultrasonic test | Standard and acceptance class, if required |
| Traceability | Heat and plate number transferred to cut pieces |
See the company’s Quality Policy for its published policy.
Source TISCRAL Plates from Champak Industries
Champak Industries’ company profile records its establishment in Mumbai in 1978 and its stockist, import and export activities. TISCRAL Plates can be requested together with other plates in the High Tensile Plates range.
What Determines the Quotation?
Grade and brand, thickness, plate size, quantity, cutting, testing and packing all affect the quotation. Say whether pricing is needed per kilogram, per plate or per finished piece.
Packing, Dispatch and Export Requirements
Give the delivery address, required date and unloading constraints. For export orders, include the destination port, delivery terms and document list.
TISCRAL Plates: Frequently Asked Questions
01What is TISCRAL Plates?
TISCRAL is a quenched and tempered steel plate listed with C45, LAS07 and SAILHARD for liner plates, conveyors, dumper bodies and loaders.
02What is TISCRAL?
A quenched and tempered steel plate used for general engineering and wear applications such as liner plates, conveyors and dumper bodies.
03What hardness does TISCRAL have?
The page does not state it: its table shows the SAILHARD row (200 BHN minimum). Ask for the TISCRAL datasheet for hardness and chemistry.
04What is TISCRAL used for?
Liner plates, the automobile industry, pumps, petrochemicals and oil and gas, conveyor plates, dumper bodies and loaders.
05Can TISCRAL be welded?
Yes, with low-hydrogen consumables and the preheat and interpass temperatures the mill gives for the grade and combined thickness.
06Which certificate should I request?
An EN 10204 3.1 mill test certificate showing the brand and grade, heat number, chemistry and mechanical properties, plus impact results where you specify a test temperature.
07Can another brand replace TISCRAL?
Brands of the same class are comparable, not identical. Chemistry, toughness, thickness range and processing advice differ by mill, so confirm any substitution with your engineer.
08Can TISCRAL plate be cut to size?
Yes. Champak Industries lists full and part plate and profile supply and a plasma-cutting service; send drawings, quantities and tolerances with your enquiry.
09Which sizes are available?
Availability depends on the grade, mill and thickness; send the thickness, width and length you need and sizes will be confirmed at quotation.
10How do I get a price and delivery date?
Send the grade, thickness, size or cutting drawing, quantity, destination and required date through the enquiry form below, by WhatsApp or by phone.
