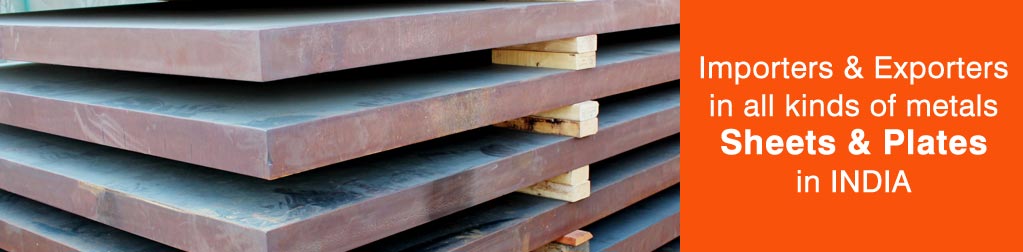

SAILHard Plates are wear safe plates with least confirmed hardness. These plates are needed in different wear safe applications.
Reading the text: The wording is machine-paraphrased. “Wear safe plates with least confirmed hardness” means wear-resistant plates with a minimum guaranteed hardness, “accessible range” means available range, “emphatically assembled” means strongly built and “Saihard” means SAILHARD.
Saihard Plate stocked by Champak Industries. is produced by the main producers utilizing high review essential material which gives them properties like safety from erosion and high solidness. These saihard plates are utilized for different general development and modern applications. Our plates are emphatically assembled and non-destructive, acclimating to the characterized parameters of the business.
Champak Industries are leading Stockist of Sailhard Plate, Sailhard Plate Suppliers, Sailhard Plate Exporter, Sailhard Plate Dealer, Sailhard Plate Distributor In India.
Accessible Range: Steel Plate- GRADE C45, TISCRAL, Lloyds Las07 &Sailhard Plate"
Available range: These are plates sold under the names listed (C45, TISCRAL, LAS07 and SAILHARD); C45 is a medium-carbon steel, not a wear plate.
SAILHARD Plates: Purchasing Specification
| Requirement | What to specify |
|---|---|
| Grade and hardness | The named plate and the minimum or typical Brinell hardness (BHN) you need. |
| Chemistry | Where the application sets limits, ask for the mill’s chemical analysis. |
| Dimensions | Thickness × width × length and number of plates, or a cutting drawing. |
| Wear class | These plates are moderate-hardness wear grades; for 400–500 HBW, see Wear Resistant Plates. |
| Documents | Mill test certificate (EN 10204 3.1) with hardness and chemistry. |
APPLICATION:
Liner Plates
Automobile Industries
Pumps
Petrochemicals and Oil & Natural Gas
Conveyer Belts Plates
Dumber Bodies Plates
Spelling: “Dumber Bodies” means dumper bodies.
Loaders
We are putting forth our customer a magnificent quality scope of Sailhard Plate. These Sail Hard Plates are popular in the business. Diverse sizes and outlines are effortlessly accessible in the business. Our Sail Hard Plates are accessible at mechanical driving costs.
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES
| Chemical Composition | Mechanical Properties | HARDNESS-200 BHN (Min) | |||
|---|---|---|---|---|---|
| GRADE | C % Max | Min % Max | P % Max | S% Max | SI % Ma |
| SAIL HARD | 0.23 | 1.6 | 0.050 | 0.050 | 0.50 |
| AI0.10 max, Cr 0.65 max, Nb +V+Ti0.15 Max | |||||
Reading the table: The headings “Min % Max” and “SI % Ma” should read Mn % max and Si % max. Values are maximum percentages; hardness is a minimum of 200 BHN.
Choosing Between the Hardness Grades
The plates in this group are chosen by hardness. The 200 and 250 BHN grades suit moderate abrasion and are easier to cut, form and weld than the 400–500 HBW plates on the Wear Resistant Plates page.
| Plate | Hardness given on its page | Typical use |
|---|---|---|
| SAILHARD (this page) | 200 BHN minimum | Liner plates, conveyors, dumper bodies, loaders |
| TISCRAL | Not stated (the page shows the SAILHARD table) | Liner plates, conveyors, dumper bodies, loaders |
| JISCRAL | Not stated | Construction machinery and mining equipment |
| LAS07 | Not stated | Liner plates, conveyors, dumper bodies, loaders |
| 200BHN | 200 BHN | Liner plates, conveyors, dumper bodies, loaders |
| 250BHN | 250 BHN | Crushers, hoppers, shovels, screens, mixers |
Ask for a datasheet for any plate whose page does not state hardness.
Related plates in this range
Cutting, Fabrication and Welding
Champak Industries describes full and part plate/profile supply and a plasma-cutting service. Send drawings, quantities, tolerances and edge preparation for your parts. High-strength plate needs controlled preheat, interpass temperature and heat input when welding, and forming limits depend on the grade and thickness; follow the mill’s recommendations.
Testing, Inspection Documents and Traceability
| Requirement | What to identify in the order |
|---|---|
| Mill test certificate | EN 10204 3.1 showing brand and grade, heat number, chemistry and mechanical properties |
| Impact test | Charpy test temperature and minimum energy, if required |
| Ultrasonic test | Standard and acceptance class, if required |
| Traceability | Heat and plate number transferred to cut pieces |
See the company’s Quality Policy for its published policy.
Source SAILHARD Plates from Champak Industries
Champak Industries’ company profile records its establishment in Mumbai in 1978 and its stockist, import and export activities. SAILHARD Plates can be requested together with other plates in the High Tensile Plates range.
What Determines the Quotation?
Grade and brand, thickness, plate size, quantity, cutting, testing and packing all affect the quotation. Say whether pricing is needed per kilogram, per plate or per finished piece.
Packing, Dispatch and Export Requirements
Give the delivery address, required date and unloading constraints. For export orders, include the destination port, delivery terms and document list.
SAILHARD Plates: Frequently Asked Questions
01What is SAILHARD Plates?
SAILHARD is wear-resistant plate with a guaranteed minimum hardness of 200 BHN, used for liner plates, conveyors, dumper bodies and loaders.
02What hardness does SAILHARD have?
The page gives a minimum hardness of 200 BHN. That is a moderate wear grade compared with the 400–500 HBW plates.
03What is the chemistry of SAILHARD?
The page gives maximum carbon 0.23%, manganese 1.6%, phosphorus 0.050%, sulphur 0.050% and silicon 0.50%, with Al 0.10, Cr 0.65 and Nb+V+Ti 0.15 maximum.
04What is SAILHARD used for?
Liner plates, the automobile industry, pumps, petrochemicals and oil and gas, conveyor plates, dumper bodies and loaders.
05Can SAILHARD be welded?
Yes, with low-hydrogen consumables and the preheat and interpass temperatures the mill gives for the grade and combined thickness.
06Which certificate should I request?
An EN 10204 3.1 mill test certificate showing the brand and grade, heat number, chemistry and mechanical properties, plus impact results where you specify a test temperature.
07Can another brand replace SAILHARD?
Brands of the same class are comparable, not identical. Chemistry, toughness, thickness range and processing advice differ by mill, so confirm any substitution with your engineer.
08Can SAILHARD plate be cut to size?
Yes. Champak Industries lists full and part plate and profile supply and a plasma-cutting service; send drawings, quantities and tolerances with your enquiry.
09Which sizes are available?
Availability depends on the grade, mill and thickness; send the thickness, width and length you need and sizes will be confirmed at quotation.
10How do I get a price and delivery date?
Send the grade, thickness, size or cutting drawing, quantity, destination and required date through the enquiry form below, by WhatsApp or by phone.
